2026 Suzuki KingQuad 500AXi Terra Green- SUZ100078
Get in Touch
Description

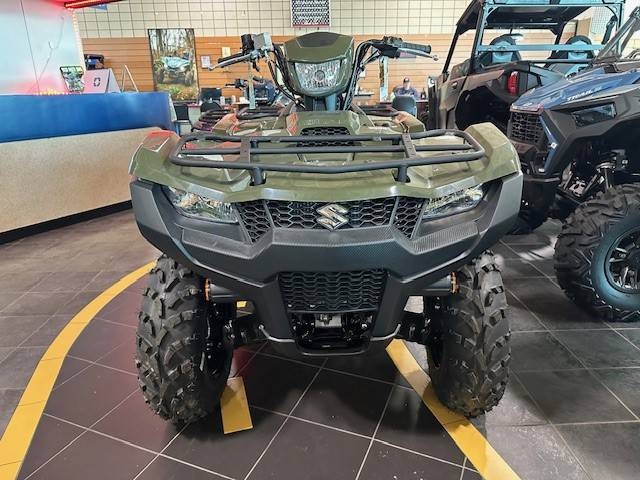

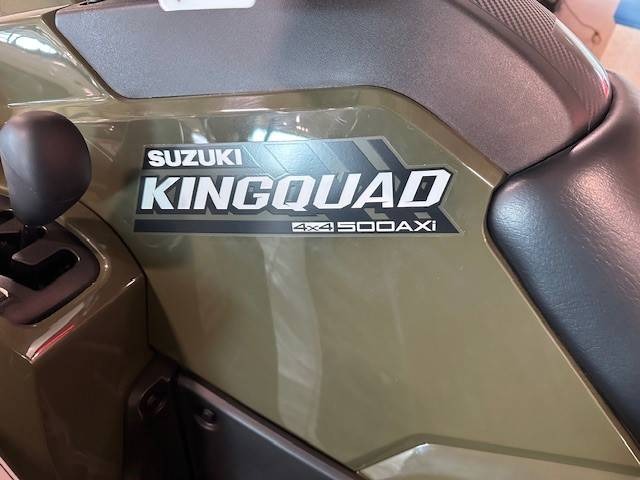

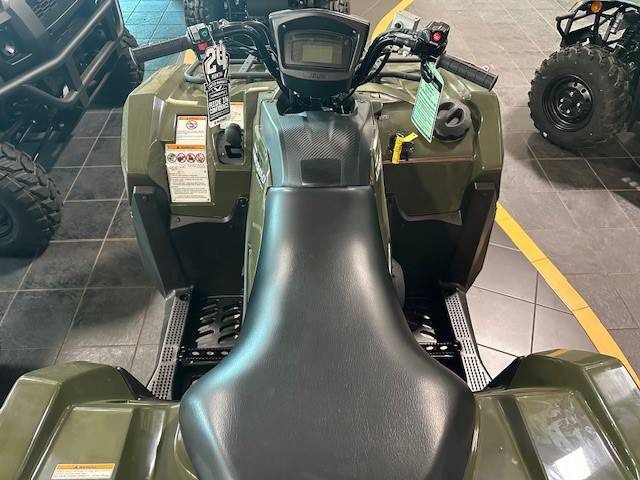

2026 Suzuki KingQuad 500AXi Terra Green
2026 KingQuad 500AXi
The KingQuad 500AXi is not just an ATV, it’s a KingQuad ATV.
Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2026 Suzuki KingQuad 500AXi helps tackle challenging terrain with the capabilities that only a KingQuad possesses.
Features May Include:
Engine Features
- The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.
- The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance.
- Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range and improves engine starting in all conditions.
- The KingQuad achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.
Transmission Features
- The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.
- A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.
- Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.
Chassis Features
- Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
- To increase rider comfort, make the ATV easier to ride, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.
- The sealed, multi-plate rear brake system’s foot brake lever ratio helps provide consistent performance. The rear brake’s clutch-type design is highly durable, has reduced unsprung weight, and minimal maintenance requirements.
- High traction 25-inch Carlisle® tires are mounted on strong steel wheels with a durable, powder-coated matte black finish.
Electrical Features
- The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.
- The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high- and low-beam settings) are part of the KingQuad’s distinctive bodywork.
- High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
- The standard winch-ready mounts and wire conduit make winch installation simple.
Body & Styling Features
- Available in Flame Red or Terra Green, the bold, angular bodywork features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.
- Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
- The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance.
- The standard receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s generous towing capacity (up to 1322 pounds). Suzuki offers an accessory ball mount, hitch pin, and R-clip making it easy to setup your KingQuad for towing (a trailer ball or hook is not included).
Additional Features
- Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).
- A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more.
- Minimum rider age: 16 years old
Dealer Notes
2026 Suzuki KingQuad 500AXi – Terra Green
493CC FUEL-INJECTED POWER. SELECTABLE 4WD. BUILT TO WORK AND EXPLORE.
The 2026 Suzuki KingQuad 500AXi in Terra Green is a rugged utility ATV built for property work, hunting, trail riding, and outdoor recreation. Its 493cc liquid-cooled four-stroke engine, electronic fuel injection, automatic transmission, and selectable 2WD/4WD system deliver dependable performance across changing terrain.
Independent suspension, high-traction braking, durable cargo racks, and a receiver-style hitch give the KingQuad 500AXi the versatility to handle chores during the week and explore Northwest Arkansas trails on the weekend.
Features May Include:
493cc Four-Stroke Engine
- The liquid-cooled 493cc SOHC single-cylinder engine delivers strong, manageable power for trail riding, hauling, and utility work.
Electronic Fuel Injection
- Suzuki fuel injection provides consistent starting, smooth throttle response, and dependable operation across changing temperatures and elevations.
QuadMatic Automatic Transmission
- Suzuki's automatic CVT-style transmission provides convenient operation with high and low ranges for adapting to recreational riding and demanding utility work.
Selectable 2WD / 4WD
- The rider can switch between 2WD and 4WD to match traction requirements as terrain and conditions change.
Differential Lock
- Front differential-lock capability provides additional traction when navigating mud, steep grades, loose surfaces, and challenging trails.
Independent Suspension
- Independent front and rear suspension helps maintain tire contact and rider comfort across rocks, ruts, and uneven terrain.
Utility Cargo Racks
- Heavy-duty front and rear racks provide useful carrying space for tools, hunting equipment, supplies, and recreational gear.
Terra Green Styling
- The Terra Green finish gives the KingQuad a classic outdoor appearance well suited to hunting, property maintenance, and recreational use.
2026 Suzuki KingQuad 500AXi Key Specifications
- Condition: New
- Color: Terra Green
- Model: KingQuad 500AXi
- Classification: Utility ATV
- Engine: 493cc liquid-cooled 4-stroke single-cylinder
- Valve Train: SOHC
- Fuel System: Electronic Fuel Injection
- Transmission: QuadMatic automatic
- Range: High / Low
- Drive System: Selectable 2WD / 4WD
- Differential: Front differential lock
- Final Drive: Shaft
- Starting System: Electric
- Front Suspension: Independent double A-arm
- Rear Suspension: Independent double A-arm
- Front Brakes: Hydraulic disc
- Rear Brake: Multi-disc
- Wheels: 12 in.
- Fuel Capacity: Approx. 4.6 gal.
- Cargo: Front and rear utility racks
- Hitch: Receiver-style hitch
- Seating: Single rider
- Primary Use: Utility / hunting / property / trail / recreation
Why Buy the 2026 Suzuki KingQuad 500AXi?
The KingQuad 500AXi delivers a practical combination of manageable size and hardworking capability. Its 493cc engine provides useful power without requiring the displacement of a larger ATV, while selectable 4WD and differential lock help provide traction when terrain becomes challenging.
For hunting, maintaining acreage, carrying equipment, or recreational trail riding, the KingQuad's automatic transmission, independent suspension, utility racks, shaft drive, and hitch make it a versatile machine for a wide range of Northwest Arkansas riding conditions.
Frequently Asked Questions
What engine does the 2026 Suzuki KingQuad 500AXi have?
It uses a 493cc liquid-cooled SOHC four-stroke single-cylinder engine with electronic fuel injection.
Is the Suzuki KingQuad 500AXi four-wheel drive?
Yes. The KingQuad features selectable 2WD and 4WD, allowing the rider to choose the appropriate drive setting for the terrain.
Does the KingQuad 500AXi have differential lock?
Yes. A front differential-lock system provides additional traction for challenging off-road situations.
Is the KingQuad 500AXi automatic?
Yes. It uses Suzuki's QuadMatic automatic transmission with high and low ranges.
Does the KingQuad 500AXi have independent suspension?
Yes. Independent suspension at the front and rear helps provide traction and ride comfort over uneven terrain.
Can the KingQuad 500AXi carry cargo?
Yes. It comes equipped with front and rear utility racks for carrying tools, supplies, hunting equipment, and other gear within the manufacturer's load limits.
Is the KingQuad 500AXi good for hunting and property work?
Yes. Its fuel-injected engine, 4WD, differential lock, automatic transmission, cargo racks, hitch, and Terra Green finish make it well suited to hunting and property use.
Where can I buy a 2026 Suzuki KingQuad 500AXi in Terra Green near Fayetteville, Arkansas?
Contact Wood Powersports Fayetteville for current availability, financing, trade-ins, exact equipment, applicable fees, and pricing on the 2026 Suzuki KingQuad 500AXi in Terra Green.
Pricing Disclaimer
Advertised prices do not include optional or dealer-installed accessories unless specifically stated as included, nor do they include applicable sales tax, title and registration fees, destination/freight charges, assembly/setup charges, documentation (doc) fees, or Privacy Information Protection (PIP) fees. Prices, promotions, incentives, specifications, equipment, and availability are subject to change without notice and may vary by unit. Photos may show optional equipment or accessories not included in the advertised price. See dealer for complete details, current pricing, included equipment, applicable fees, and final out-the-door price.
Info
Industry
Powersports
Make
Suzuki
Model
KingQuad 500AXi
Trim
Terra Green
Year
2026
Msrp
8379
Stock Number
SUZ100078
Category
ATV
Subcategory
Utility
Condition
New
Location
Wood Powersports - Fayetteville
Fuel Type
Gas
VIN
5SADW21A7T7100078
Color
Terra Green
Seats
1
Specifications
Fuel Type
Gas
Engine Type
493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
Bore x Stroke
87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
Compression Ratio
9.9:1
Fuel System
Suzuki electronic fuel injection
Ignition/Starter
Electronic ignition (transistorized) | Electric
Lubrication System
Wet sump
Transmission
Automatic variable ratio (V-belt), with high/low-range and reverse
Clutch
Dry shoe, automatic, centrifugal type
Wheels
Driven: 2WD, 4WD and 4WD Differential Lock
Drive Train
Final: Shaft drive
Suspension (Front)
Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Suspension (Rear)
Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Front Brake
Disc brakes, twin rotors
Rear Brake
Sealed oil-bathed multi-disc
Front Tire
AT25 x 8-12**, tubeless type x 2
Rear Tire
AT25 x 10-12**, tubeless type x 2
Fuel Capacity
17.5 L (4.6 US gal.)
Headlight(s)
12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
Lighting
Tail: LED
Length
2150 mm (84.6 in.)
Width
1215 mm (47.8 in.)
Height
1285 mm (50.6 in.)
Wheelbase
1285 mm (50.6 in.)
Ground Clearance
260 mm (10.2 in.)
Seat Height
920 mm (36.2 in.)
Weight (Wet)
Curb: 315 kg (695 lb.), 316 kg (697 lb.) CA model
Warranty
24-month limited warranty
